The solar and methanol fuel cell based power supply is especially designed for LiDAR devices.
The power supply is recommended for all climates, except artic conditions with only little hours of
sunshine.

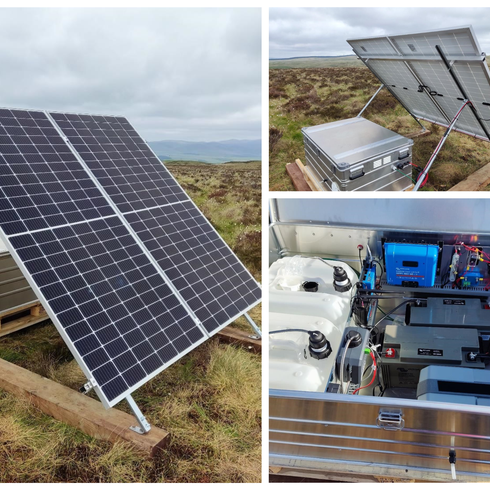

The system combines a powerful Methanol-based EFOY Pro fuel cell and 2x 460 W solar modules (optional 4x) . The system is equipped with two 28 liters fuel cell cartridges.
The EFOY Pro fuel cell is equiped with an EFOY cloud web monitoring platform. Alarms, such as low fuel or low battery voltage, can be configured. Thus the system automatically informs via email or SMS in case of triggering alarms.
Further we control power supply output through an ON/OFF relay triggered on the Victron cloud.
| Summary | |
|---|---|
|
Energy system enclosure, incl. assembly and wiring |
|
|
Hybrid Power Pack, including |
|
| Remote control through Victron cloud with load control to switch the power supply ON and OFF |
| Characteristic | Description |
|---|---|
| Total output peak power | 200 W |
| Output voltage | 24 VDC |
| Battery bank | 130 Ah / 24 V (two Victron Lead GEL battery batteries 130 Ah/12 V each) Victron low voltage battery protector |
| Solar supply | |
| Solar supply |
2 solar modules @ 460 - 490 W / 24 V 4 solar modules instead of 2 is possible as an option Solar charger: Victron SmartSolar 150/35 charging controller |
| Fuel cell | |
| Fuel cell reference | EFOY Pro2800 fuel cell with FM2 fuel manager |
| Power output | 125 W |
| Nominal voltage | 12/24 V DC |
| Fuel cell cartridge | 2 x 28 liters Methanol, M28 cartridge + FM2 adapter Fuel Sensor FS2 |
| Operational panel to display status Modem 4G protection box Remote monitoring set: Industrial router (no SIM card) EFOY cloud monitoring WEB platform |
|
| https://www.efoy-pro.com/en/efoy/efoy-efoypro/ (Dimensions etc.) |
|
| Nominal Methanol consumption | 0.9 liters/kWh |
|
Classification of Methanol |
Index: 603-00100-X; EINECS, ELINCS, NLP: 200-659-6; CAS 67-56-1 |
| Operating temperature | -20°C ... +40°C |
|
Total dimensions |
Power Pack 120 x 80 x 51 cm (LxWxH) Solar Module: 100 x 200 cm (LxWxH) |
| Total weight | Approx. 216 kg |
