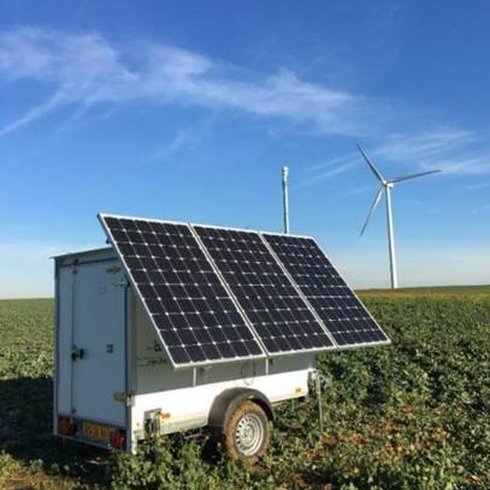

The stand-alone power supply system is especially made to supply and host a LiDAR device. The power supply system is recommended for all climates, except artic conditions with only little hours of sunshine. The system combines a powerful Methanol-based EFOY Pro fuel cell and three solar modules. The system is equipped with two 28 liters fuel cell cartridges.
In order to monitor and control the EFOY Pro fuel cell, a Netbiter modem is installed. Hence, the modem sends current system data to the web viewer. The frequency can be configured via the web viewer. Alarms, such as low fuel or low battery voltage, can be configured. Thus the system automatically informs via email or SMS in case of triggering alarms.
The trailer is designed to host a LiDAR device. It works with most LiDAR on the market like MeteoLaser, ZX and Windcube. It has a removable hatch on its top for the laser beam.
In very remote sites the trailer can be moved by a helicopter using straps or lifting brackets (optional).
| Characteristic | Description |
|---|---|
| DC Power supply for LiDAR | 24 V DC power supply installed in flight case |
| Power consumption range | 30 - 90 W |
| Power supply for the LiDAR | 24 V DC with stabilized DC/DC converter |
| Battery bank | 440 Ah / 24 V (4 x 220 Ah 12 V AGN) Weight: 280 kg Battery guard Note: Battery bank can easily be removed for transport by helicopter. |
| Solar supply | 3 modules @ 350 W / 24 V (Total: 1050 W) Solar panels wattage may deviate by ±10%. Blue Solar MPPT 150/35 solar charger |
| Switch for battery bank & solar panels | |
| Remote control | WEB based monitoring & control system (Interface) from Netbiter via GSM-2-GPIO modem (quad-band) including antenna |
| Remote control of power supply (on & off) | |
| Extra AC power supply (for Laptop) as an option | 24-375 W inverter |
|
Fuel cell |
|
|---|---|
|
Type |
EFOY Pro 2800 125 W |
| Power output | 125 W |
| Nominal voltage | 24 V |
| Nominal Methanol consumption | 0.9 liters/kWh |
| Classification of Methanol | Index: 603-00100-X; EINECS, ELINCS, NLP: 200-659-6; CAS 67-56-1 |
| Fuel cell cartridge | 2x 28 liters Methanol, M28 cartridge (2 x M28 adapter) |
| Fuel cell cartridge capacity | 62.2 kWh @ 56 liters Methanol |
|
Information on ingredients - Fuel cartridge M28 |
|
|---|---|
| Methanol | Substance for which an EU exposure limit value applies |
| Registration number (REACH) | -- |
| Index | 603-001-00-X |
| ENIECS, ELINCS, NLP | 200-659-6 |
| CAS | 67-56-1 |
| Classification acc. to Directive 67/548/EEC | Highly flammable, F, R11 Toxic, T, R23/24/25 Toxic, T, R39/23/24/25 |
| Classification acc. to Regulation (EC) 1272/2008 (CLP) | Flam. Liq. 2, H225 Acute Tox. 3, H331 Acute Tox. 3, H311 Acute Tox. 3, H301 STOT SE 1, H370 |
|
Trailer adapted for the LiDAR |
|
|---|---|
|
Equipment |
Roof hatch |
|
Accessories |
4 x support legs with flanges Manual fire extinguisher Spare wheel Manual & documentation |
| Operating temperature | 0 ... 35 °C |
| Total dimensions | 3.78 m x 1.81 m x 2.11 m (length x width x height) |
| Total weight | approx. 850 kg |
| Manufacturer of Trailer | Humbaur (Germany) |
